Through meticulous design, our wheelset achieves a precise balance of stiffness, comfort and light weight. At just 1260g, the SL49x Carbon Spokes Disc is engineered for optimal performance and efficiency. A 20 carbon spoke configuration, 24mm inner width rim, and optimized spoke tensioning ensure exceptional responsiveness and stability.

Designed for demanding riders, this wheelset excels in diverse conditions, from grueling climbs to high-speed sprints. Its advanced materials and precision engineering guarantee enhanced power transfer, reduced weight, and unwavering performance.

Experience the pinnacle of cycling performance with our expertly crafted wheelset.

  • 49mm F / R - SLX Carbon Spokes Series
  • 24mm Inner, 31mm Outer Width
  • 3.2mm High Tensile Strength Carbon Spokes
  • 2 x F / R TRIPEAK Ceramic Bearings

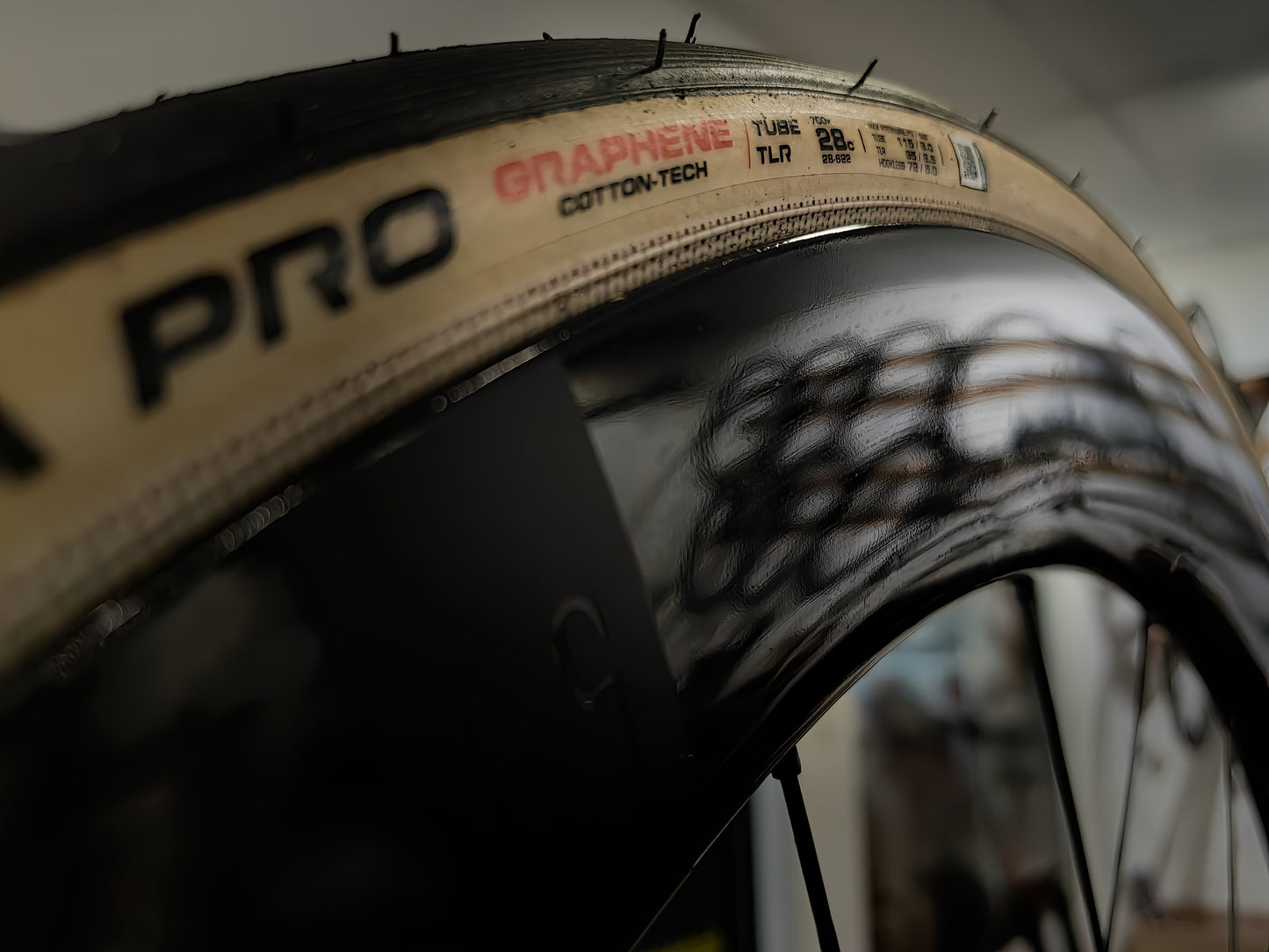

  • 28c - 32c Tyres for Optimal Aero Width
  • Centerlock Disc Brake
  • Handbuilt by Wheel Angel (Not from labour factories)
  • 5 Years Rim Warranty + Lifetime Workmanship & Spokes Warranty
  • 1260g (+/-2%)
  • Price includes a pair of F / R Wheels

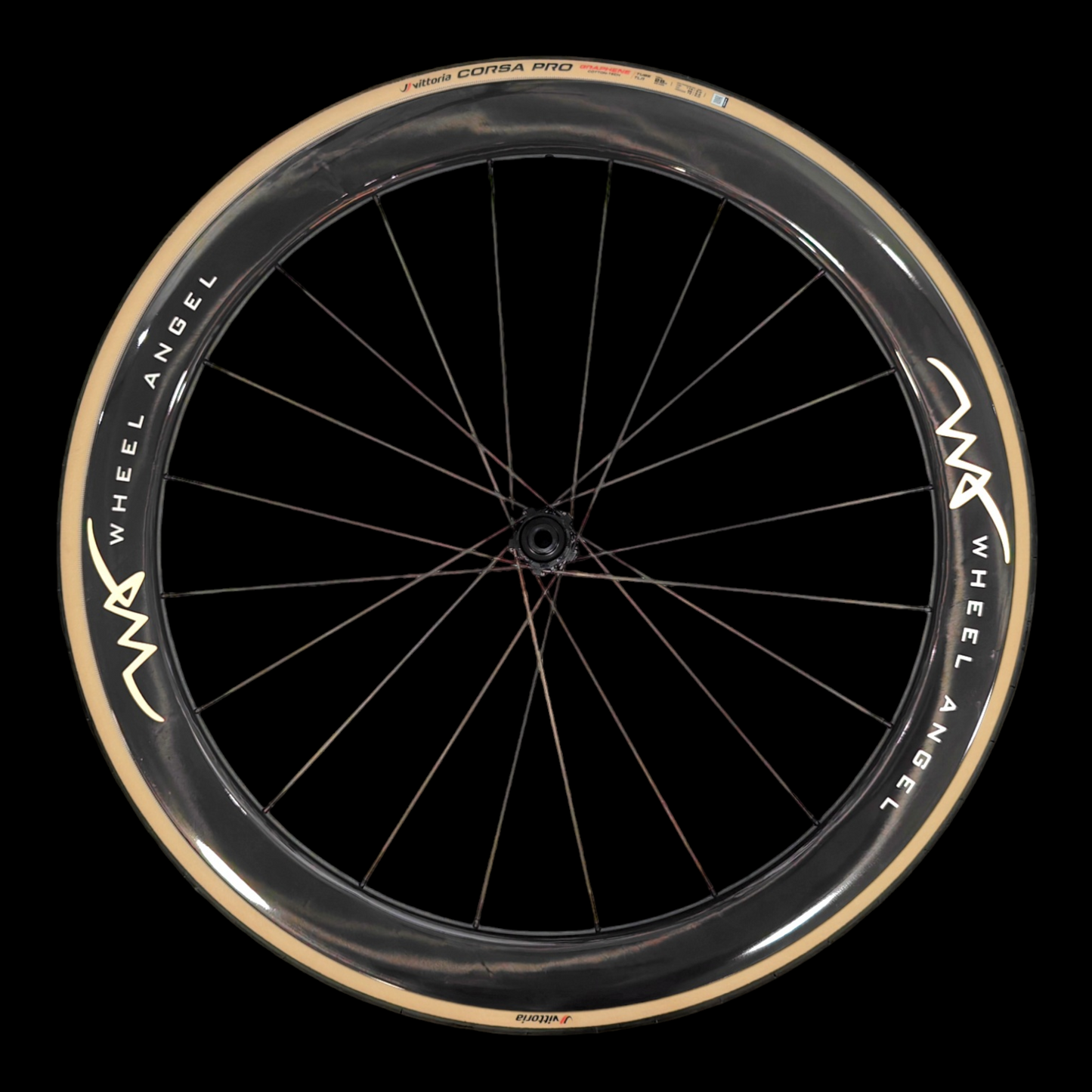

SL49x Carbon Spokes Disc

SL49x Carbon Spokes Disc

Regular price $2,180.00 SGD
Regular price Sale price $2,180.00 SGD
Sale Sold out
Shipping calculated at checkout.
View full details

1260g

Specifications

SLX CARBON RIMS

  • Hooked Rims Tubeless Compatible
  • Outer Width 31mm
  • Inner Width 24mm
  • Height 49mm
  • Rim Weight 430g ea (+/-3%)
  • Hole Count 20, Internal Nipples
  • Natural Gloss Finish (Paint Free)

SLX HUBS

  • High Precision CNC Machined 6061 / 7075 Alloy
  • Engagement Type: 36T or 54T Ratchet
  • Freehub Body Available with Shimano 11/12sp, SRAM XDR
  • Thru Axle 12mm x 100mm F / 142mm R
  • Thru Axles are not included
  • Front Bearings: 2pcs x Tripeak Ceramic 6803
  • Rear Hubshell Bearings: 2pcs x Tripeak Ceramic 15267
  • Rear Freehub Bearings: 2pcs x Japanese Steel 6802
  • Colour: Matte Black Anodised

SLX CARBON SPOKES

  • SLX Carbon Spokes with Alloy Tips
  • W3.2mm x T1.4mm
  • High Tensile Strength Over 450kgf Tested
  • Elliptical Shape
  • Internal Alloy Nipples

ACCESSORIES

  • 2 x Tubeless Rim Tapes, 2 Rounds Each Wheel (Pre-installed)
  • 2 x Tubeless Valves Included
  • 1 x Wheel Bag
  • Decal: Wheel Angel Logo (Let us know the colour you like to have!)

Built For

Unleash your full potential with our 49mm depth carbon spoke wheelset, weighing in at 1260g. Carbon spokes ensure ultra-fast power transfer without material yield, while the quick engagement hub provides instant acceleration. Tubeless tyres compatibility adds the final touch for an ultimate ride quality. Agile, well-balanced, and aerodynamic, these wheels excel in various conditions - from hilly roads to strong winds or flat courses, perfect for climbing, sprinting, and everything in between.

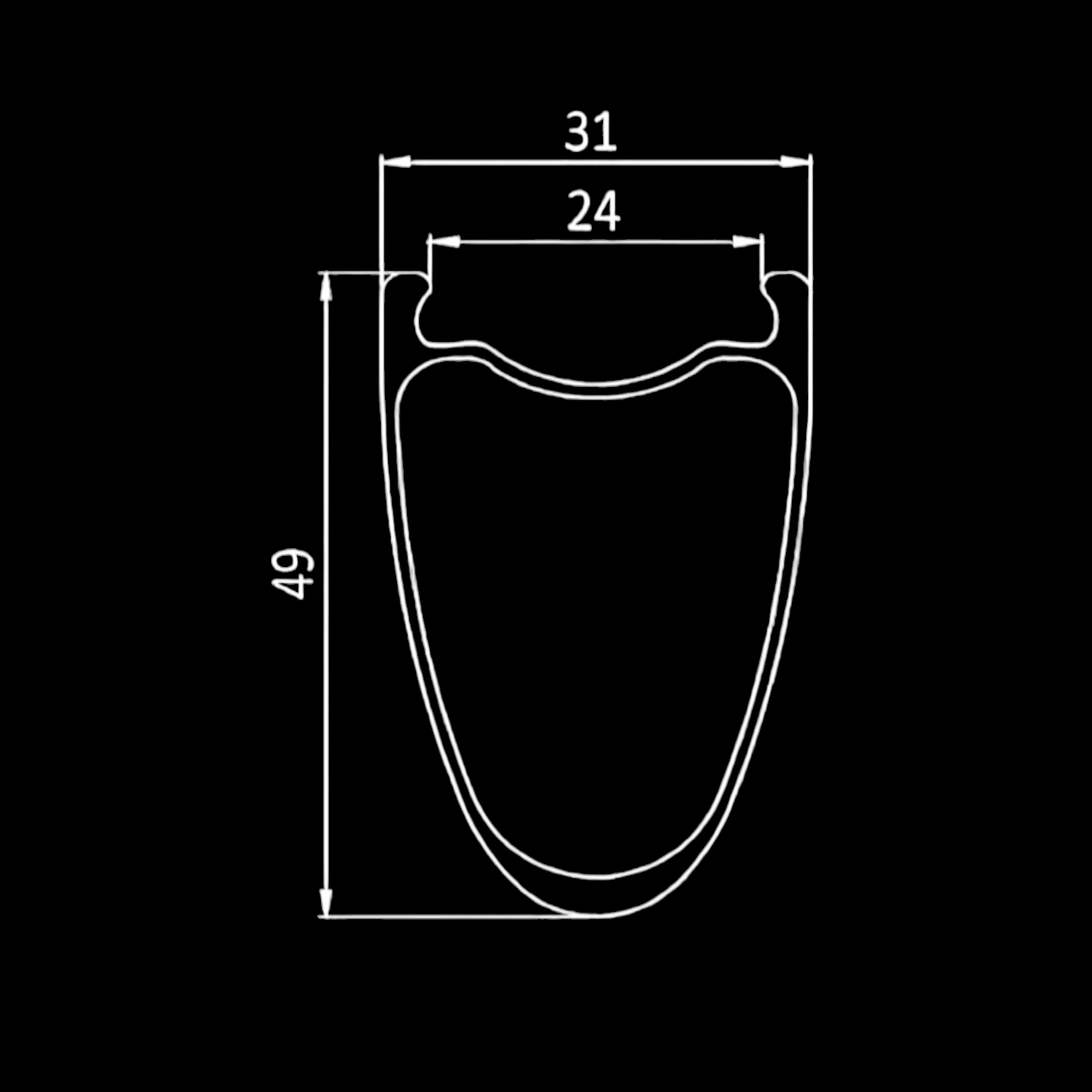

Carbon Spoke Rim Profile

Power & Comfort Without Sacrifice

Carbon spokes provide a structural advantage, yielding a weight reduction of approximately 100g per pair. The carbon material exhibits high stiffness under tensile loading, resulting in minimal material yield and flex, thereby facilitating instantaneous power transfer. However, this elevated stiffness can lead to diminished ride comfort. To mitigate this, our wheelset design incorporates a 20-spoke configuration, a 24mm inner width rim for enhanced air volume, and optimized spoke tensioning to increase comfort, particularly in the front wheel, while maintaining performance and efficiency. By combining advanced carbon spoke technology with carefully considered design elements and the optional DT Swiss 54T ratchet upgrade for enhance engagement - the SL49x will provide riders with an even more responsive and reliable riding experience.

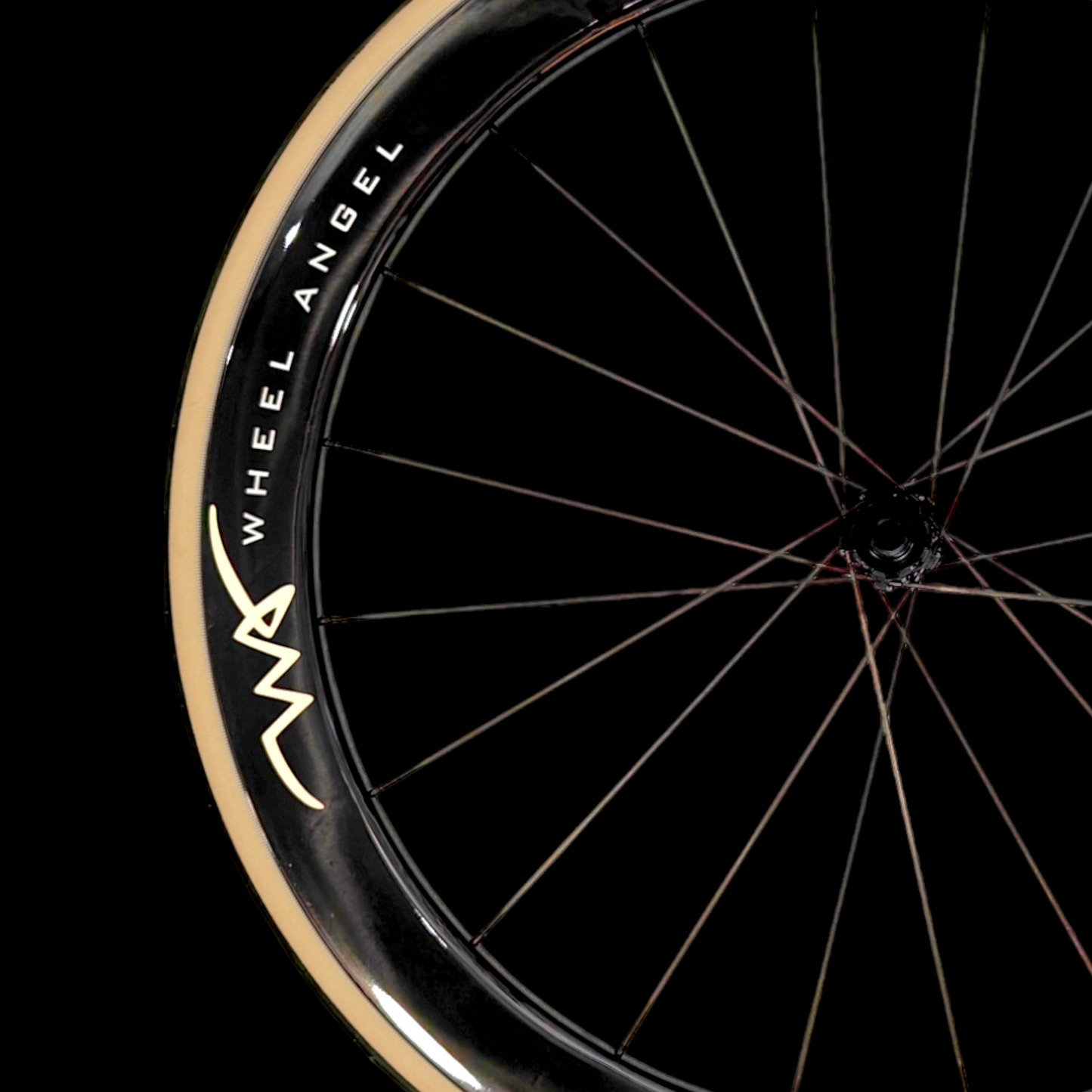

Carbon Spokes

Not Built Elsewhere

Even the finest components can't compensate for shoddy workmanship. That's why we build our wheels in-house, in our Singapore workshop, where we ensure precise assembly and exceptional workmanship. Unlike mass-produced wheels from overseas labour factories, ours are meticulously handcrafted to deliver flawless performance. Proper spoke lengths, precise thread preparation, and meticulous assembly guarantee that our carefully selected specs reach their full potential. Workmanship is the final frontier, and we refuse to compromise.

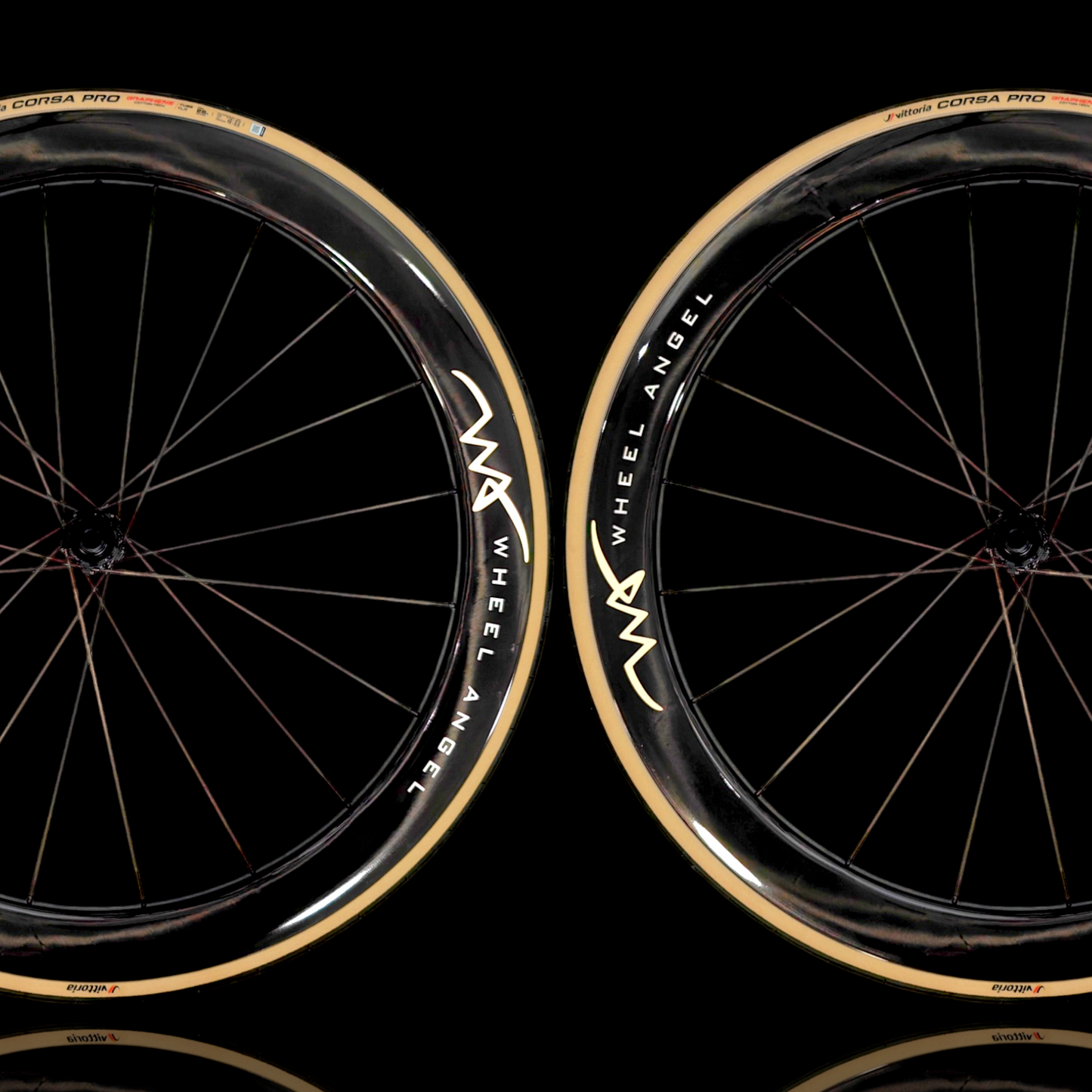

Carbon Spokes Pair

Strong Support

Experience Strong Support with us. All original owners will enjoy:

  • 5-years warranty for rim defects
  • 5-years hub warranty
  • Lifetime spoke & workmanship warranty

Check with us to know more!

With years of experience spanning multiple brands, we've honed our expertise to craft the finest wheelsets or you.
We believe our wheels remain a part of us even after sale, so we're committed to delivering exceptional service and support.
