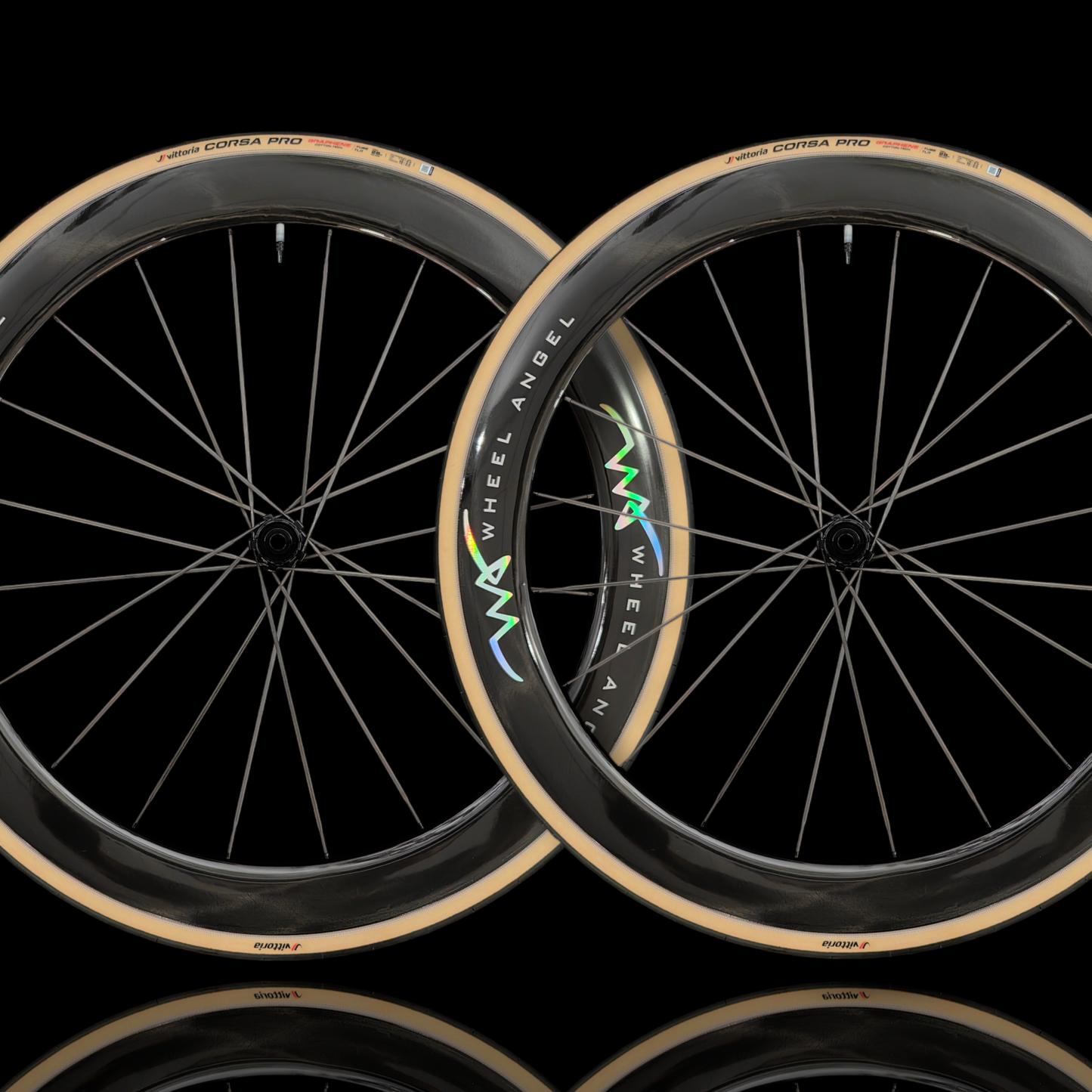

Engineered for uncompromising speed and efficiency.

Impressive light weight at 1290g, the SL54x Carbon Spokes wheelset combines optimal stiffness, comfort, and aerodynamics. Its 54mm depth, 20-spoke design, and 24mm rim provide reduced air resistance, enhanced stability, and improved power transfer.

Designed for discerning riders, the SL54x excels in all conditions,

Climbs At just 1290g, its lighter than many conventional lower profile wheels.
Sprints Proper tensioned carbon spokes yields little & create great responsiveness & lateral stiffness.
Top Speed & Control Optimal aero width and depth for the perfect balance of speed and handling.



Experience the ultimate in road cycling performance with our SL54x Carbon Spoke wheelset. Elevate your ride and discover new heights of speed and efficiency.

  • 54mm F / R - SLX Carbon Spokes Series
  • 24mm Inner, 31mm Outer Width
  • 3.2mm High Tensile Strength Carbon Spokes
  • 2 x F / R TRIPEAK Ceramic Bearings
  • 28c - 32c Tyres for Optimal Aero Width
  • Centerlock Disc Brake
  • Handbuilt by Wheel Angel (Not from labour factories)
  • 5 Years Rim Warranty + Lifetime Workmanship & Spokes Warranty
  • 1290g (+/-2%)
  • Price includes a pair of F / R Wheels

SL54x Carbon Spokes Disc

SL54x Carbon Spokes Disc

Regular price $2,180.00 SGD
Regular price Sale price $2,180.00 SGD
Sale Sold out
Shipping calculated at checkout.
View full details

1290g

Specifications

SLX RIMS

  • Hooked Rims Tubeless Compatible
  • Outer Width 31mm
  • Inner Width 24mm
  • Height 54mm
  • Rim Weight 460g ea (+/-3%)
  • Hole Count 20, Internal Nipples
  • Natural Gloss Finish (Paint Free)

SLX HUBS

  • High Precision CNC Machined 6061 / 7075 Alloy
  • Engagement Type: 36T or 54T Ratchet
  • Freehub Body Available with Shimano 11/12sp, SRAM XDR
  • Thru Axle 12mm x 100mm F / 142mm R
  • Thru Axles are not included

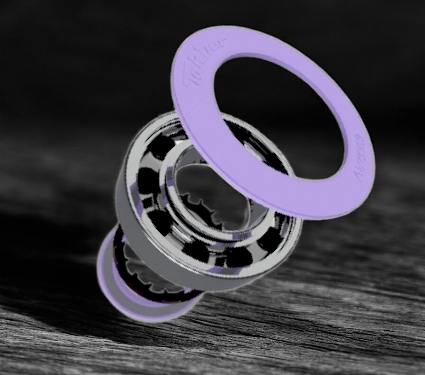

  • Front Bearings: 2pcs x Tripeak Ceramic 6803
  • Rear Hubshell Bearings: 2pcs x Tripeak Ceramic 15267
  • Rear Freehub Bearings: 2pcs x Japanese Steel 6802
  • Colour: Matte Black Anodised

SLX CARBON SPOKES

  • SLX Carbon Spokes with Alloy Tips
  • W3.2mm x T1.4mm
  • High Tensile Strength Over 450kgf Tested
  • Elliptical Shape
  • Internal Alloy Nipples

ACCESSORIES

  • 2 x Tubeless Rim Tapes, 2 Rounds Each Wheel (Pre-installed)
  • 2 x Tubeless Valves Included
  • 1 x Wheel Bag
  • Decal: Wheel Angel Logo (Let us know the colour you like to have!)

Built For

Experience the ultimate synergy of speed, style, and weightlessness with our 54mm deep, 31mm wide carbon rim wheelset, expertly designed to create an aerodynamic airfoil shape when paired with a 28c tire. This sleek profile slices through the air with unparalleled efficiency, while the ultra-lightweight design (1290g) and high-engagement hubs make it a climber's dream. The ultra-stiff carbon spokes ensure instantaneous power transfer and a sprinter's advantage, propelling you to the finish line with unmatched speed. But it's not just about speed - it's about style. This wheelset adds a touch of aerodynamic elegance to any bike, making it a true head-turner. Whether you're conquering mountain peaks or dominating flat courses, this wheelset is the perfect fusion of form and function.

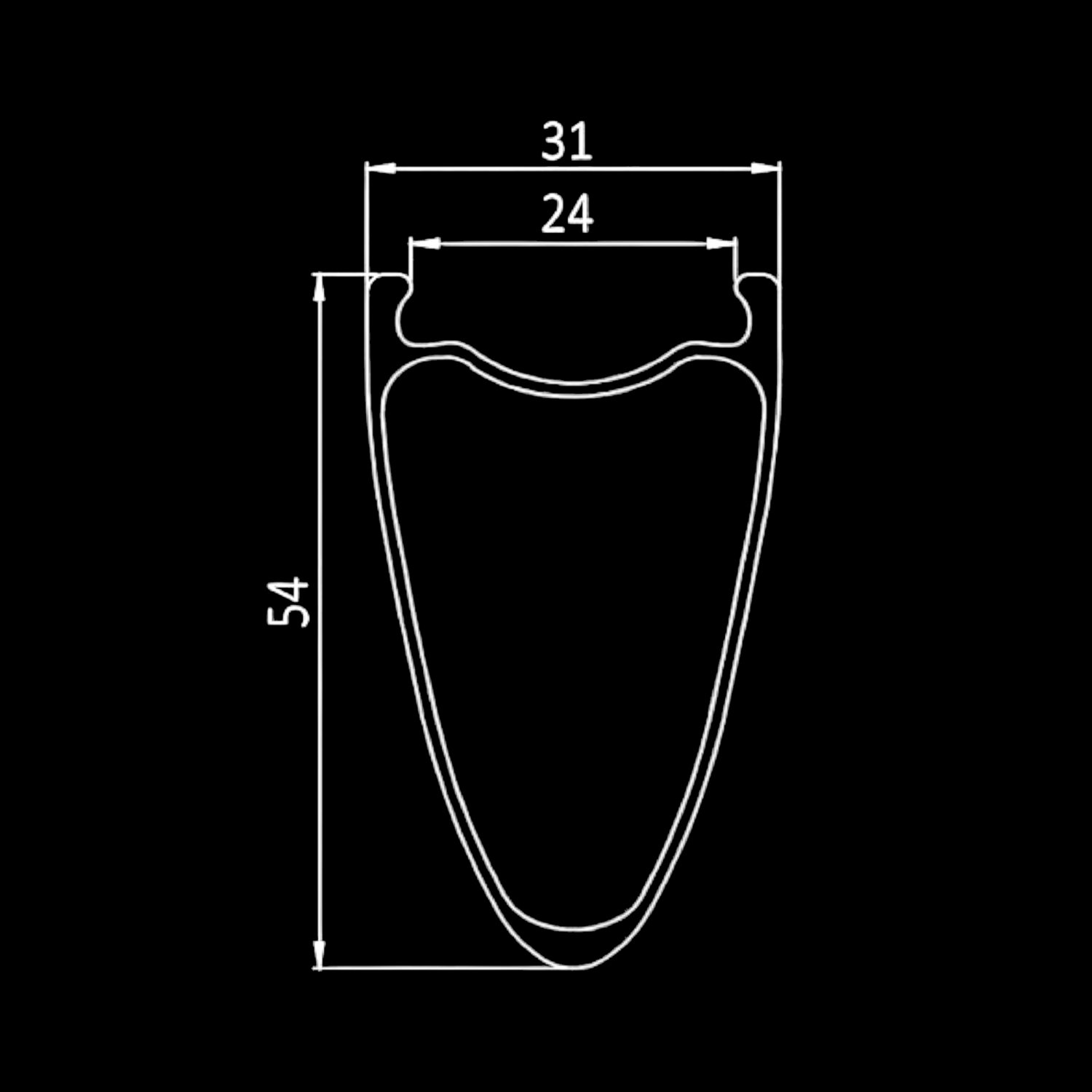

Carbon Spoke Rim Profile

Power & Comfort Without Sacrifice

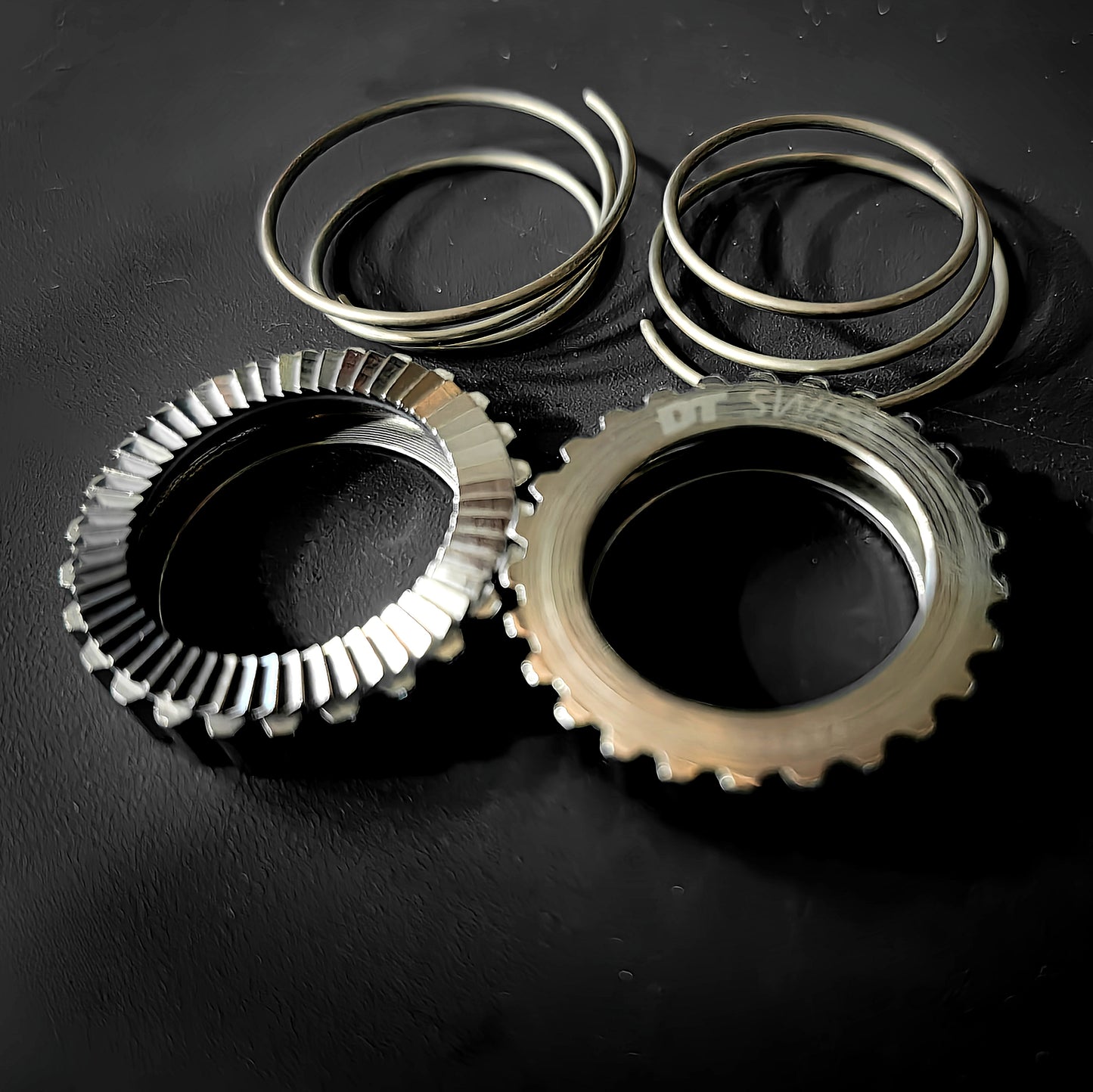

Carbon spokes provide a structural advantage, yielding a weight reduction of approximately 100g per pair. The carbon material exhibits high stiffness under tensile loading, resulting in minimal material yield and flex, thereby facilitating instantaneous power transfer. However, this elevated stiffness can lead to diminished ride comfort. To mitigate this, our wheelset design incorporates a 20-spoke configuration, a 24mm inner width rim for enhanced air volume, and optimized spoke tensioning to increase comfort, particularly in the front wheel, while maintaining performance and efficiency. By combining advanced carbon spoke technology with carefully considered design elements and the optional DT Swiss 54T ratchet upgrade for enhance engagement - the SL54x will provide riders with an even more responsive and reliable riding experience.

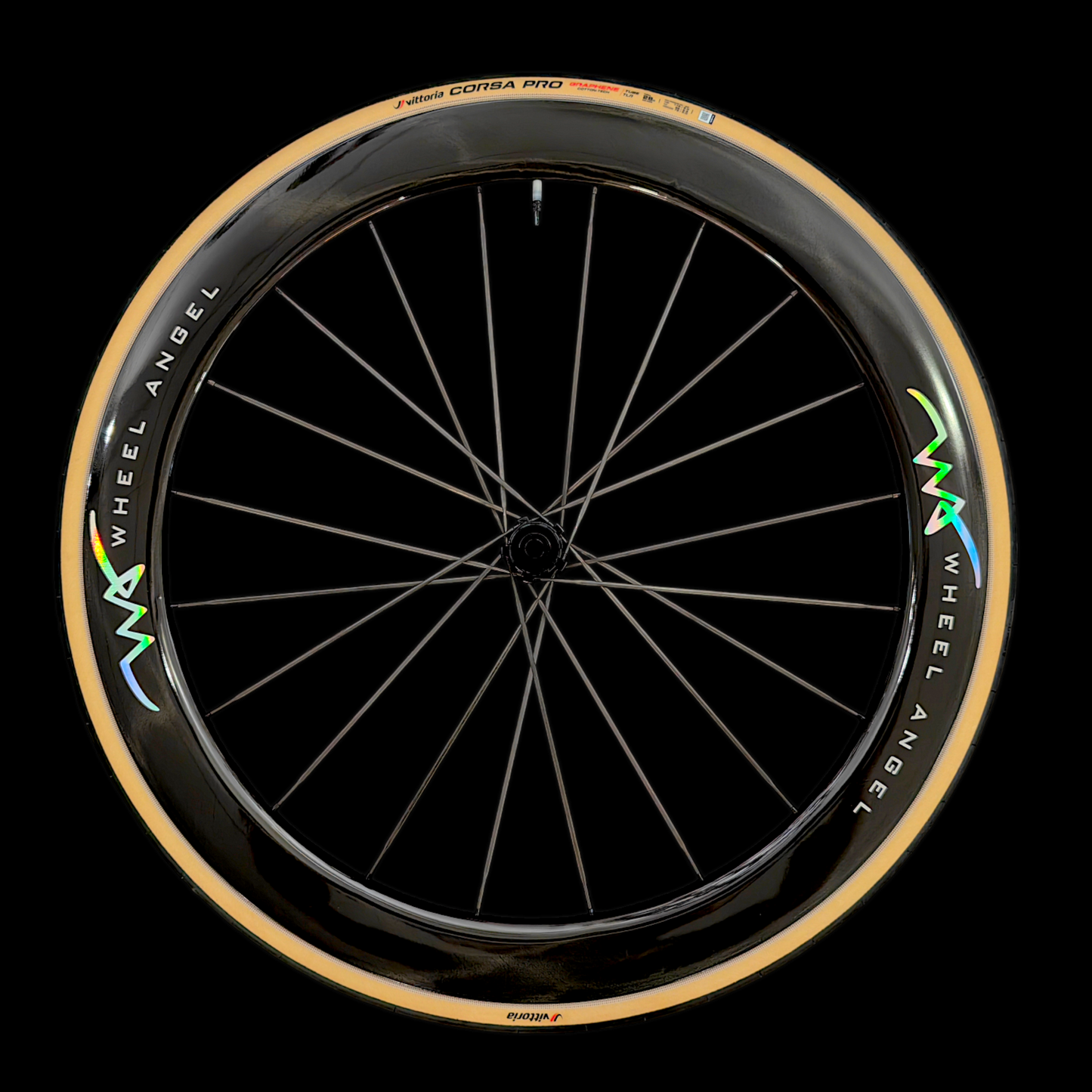

Carbon Spokes Wheels Side

Not Built Elsewhere

Even the finest components can't compensate for shoddy workmanship. That's why we build our wheels in-house, in our Singapore workshop, where we ensure precise assembly and exceptional workmanship. Unlike mass-produced wheels from overseas labour factories, ours are meticulously handcrafted to deliver flawless performance. Proper spoke lengths, precise thread preparation, and meticulous assembly guarantee that our carefully selected specs reach their full potential. Workmanship is the final frontier, and we refuse to compromise.

Strong Support

Experience Strong Support with us. All original owners will enjoy:

  • 5-years warranty for rim defects
  • 5 years hub warranty
  • Lifetime spoke & workmanship warranty

Check with us to know more!

With years of experience spanning multiple brands, we've honed our expertise to craft the finest wheelsets or you.
We believe our wheels remain a part of us even after sale, so we're committed to delivering exceptional service and support.
